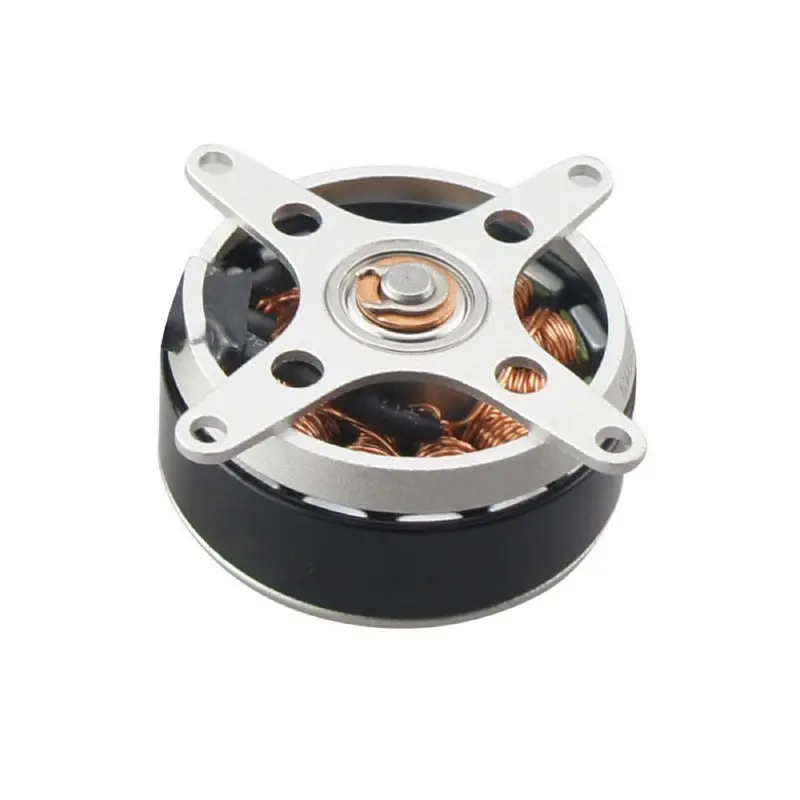

Dualsky DSXM51641 Eco 2306C V2 Brushless Motor – 2300KV

Description

This Dualsky ECO 2306C V2 2300kv Brushless Motor is designed for 200-300g planes.

Specification

• KV: 2300
• Turns: 9.5
• Weight: 30 g
• Dimensions: 28.8 x 20.9 mm
• Slots & Poles: 12N14P
• Ri (mOhm): 61.2
• Io @ 10V (A): 1.1 A
• No. of cells (LiPo): 2S, 3S LiPo
• Max Efficiency Current (A): 13.5 A
• Max. Burst Current (15S)[A]: 22.5 A
• Max. Power(15S)[W]: 180 W
• Max. Torque [N*M]: 0.112
• Shaft diameter(mm): 3.175
• Mountingholes pitch: 32
• Input Connectors: GC2.0
• Recommended ESC: XC-22-LITE or XC1812BA
• Propeller:
  • 2S: 8x4E, PT10x30i
  • 3S: 5.1×4.5E, 6x3E
• Class: 200-300g aiplanes e.g. Popular EPP profile planes
