Description

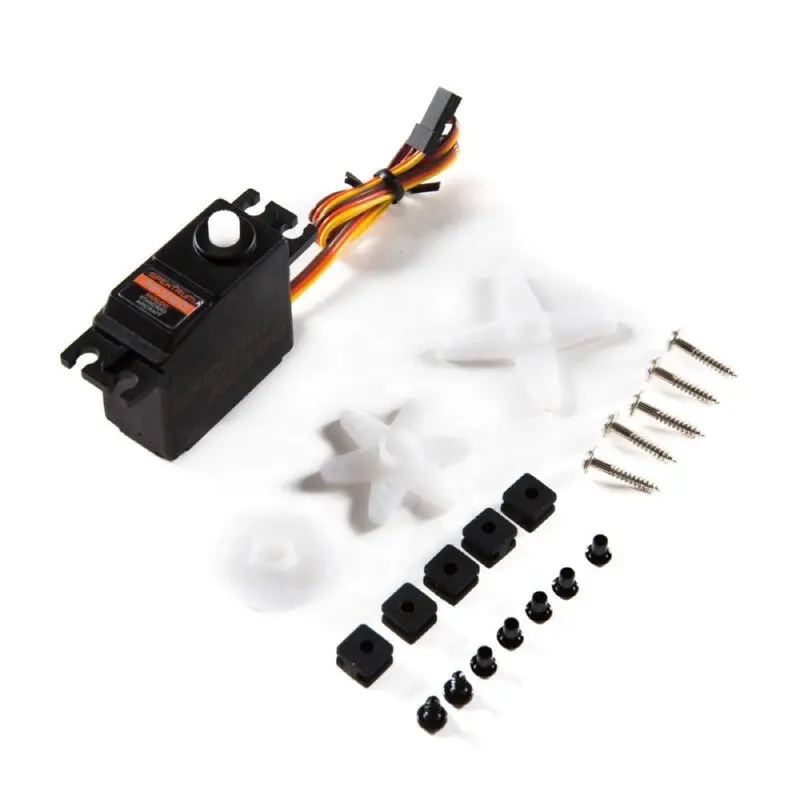

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
Specs
- Application: Air
- Bearing: Single
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 12″ (305 mm)
- Deadband: 3µs
- Gear Type: Nylon
- Input Voltage: 4.8V to 6.0V
- Material: Plastic
- Maximum Servo Speed: 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V
- Maximum Servo Torque: 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V
- Product Application: Air
- Product Height: 1.36″ (35 mm)
- Product Length: 1.52″ (39 mm)
- Product Weight: 1.3oz (37g)
- Product Width: 0.74″ (19 mm)
- Programmable: No
- Rotation Range: 120 deg
- Servo Operating Voltage: 4.8 – 6.0V
- Servo Size Category: Standard
- Servo Type: Analog
- Spline Count: 23 – Tooth
- Water-Resistant: No
- Wire Gauge: 22 AWG
