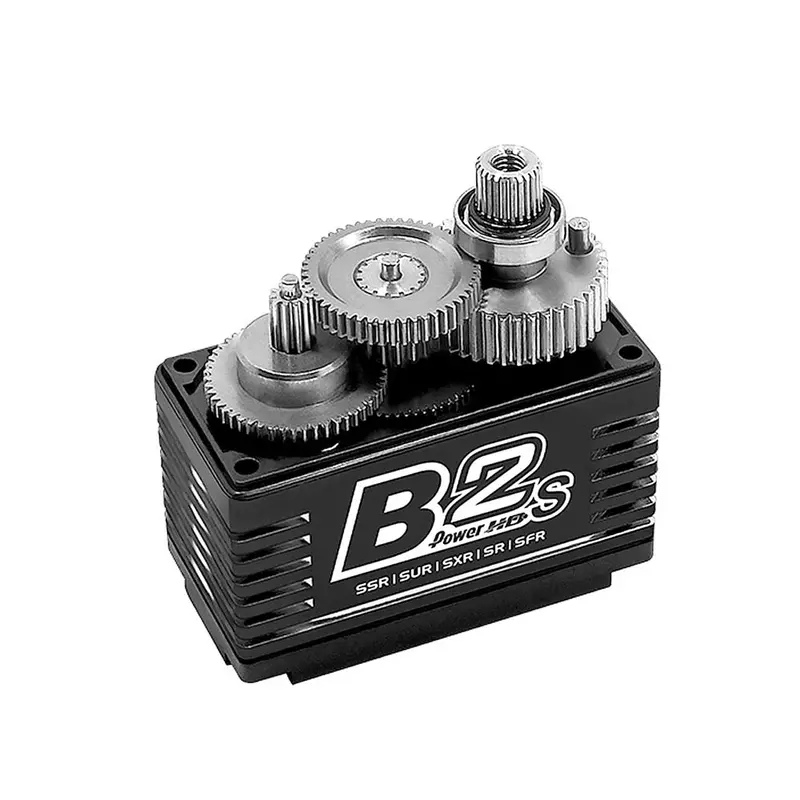

Power HD B2S HV Coreless Servo for RC Models

Description

B2S HV Coreless Servo

Specifications

• Torque(6.0V): 38.0 kg-cm (527.7 oz/in)
• Torque(7.4V): 45.0 kg-cm (624.9 oz/in)
• Torque(8.4V): 50.0 kg-cm (694.4 oz/in)
• Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)│
• Speed: 0.10 sec (8.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 67.0 g (2.36 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：Brushless Motor
• Gear Type：Titanium & Steel
• Operating Temperature：-10℃~60℃
• Working frequency：1520μs / 333hz
• Size：41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)
