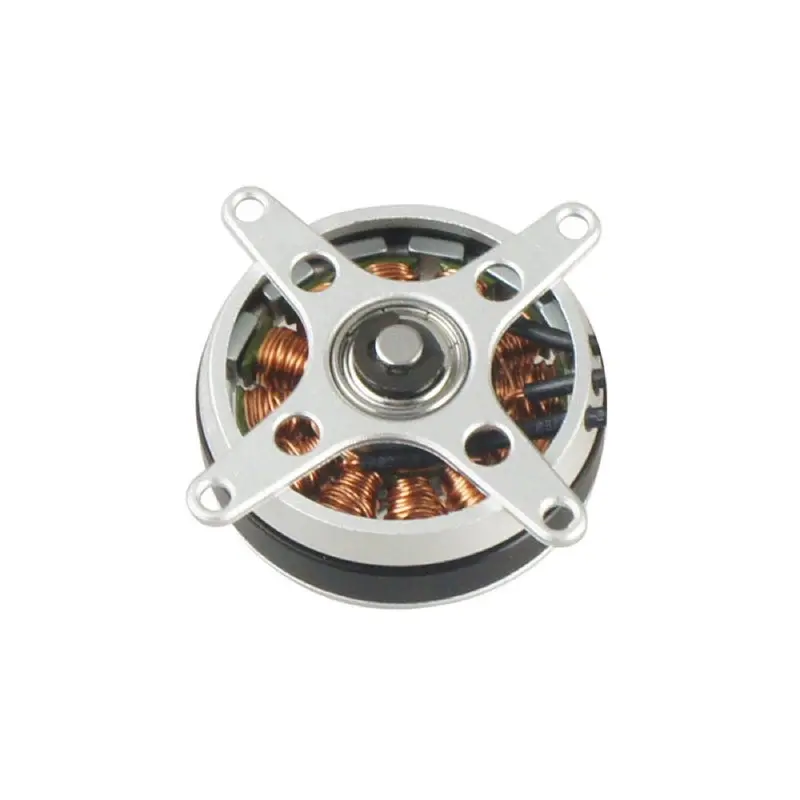

Description
The Dualsky ECO 2 Series motors have made great improvements in many aspects. It brought a new electromagnetic design, more competitive performance and efficiency, long-time endurance and waterproof.
Features
- High temperature resistant
- Impact resistance increased by about 10g
- NMB ball bearings are durable and low noise
- Motor working life significantly increased by 50% compared to V1
- Up to 500V insulation level
- Rust-proof main shaft
Specification
- KV: 1470
- Turns: 31
- Weight: 19 g
- Dimensions (D x L): 28.5 x 15.7 mm
- Slots & Poles: 12N14P
- Ri (mOhm): 377
- Io @ 10V: 0.3 A
- No of Cells (LiPo): 2 – 3
- Max. Efficiency Current: 5 A
- Max. Burst Current (15S): 8 A
- Max. Power (15S): 96 W
- Max. Torque [N*M]: 0.062
- Shaft Diameter: 3.175 mm
- Mounting Holes Pitch: 32
- Input Connectors: GC2.0
- Recommended ESC: XC-12-LITE or XC1010BA
- Propeller:
- 2S: 9×4.7SF, 10x5E
- 3S: 7x4E, PT8x2.3i
- Class: 100-150g airplanes e.g. F3P or indoor freestyle
